GL Series represents our high-performance solution for maintenance-free power transmission
TECHNICAL SPECIFICATIONS
HIGH-PERFORMANCE LAMELLAR COUPLINGS
MAINTENANCE-FREE POWER TRANSMISSION SOLUTIONS. DESIGNED TO COMPENSATE MISALIGNMENTS THROUGH STAINLESS STEEL DISC PACKS.
CARDAN AND TRANSMISSION S.R.L. The GL Series is engineered for industrial drives requiring zero backlash and high torsional stiffness. Configurations available for various industrial requirements:

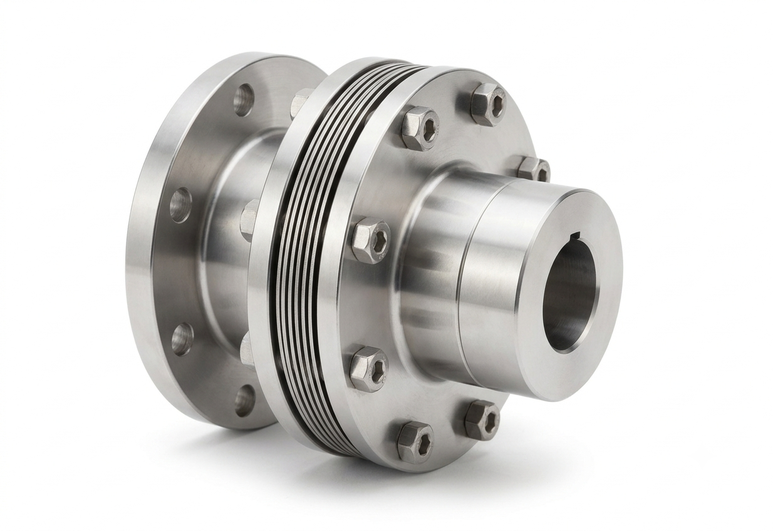

- Single Disc Pack (GL-S)

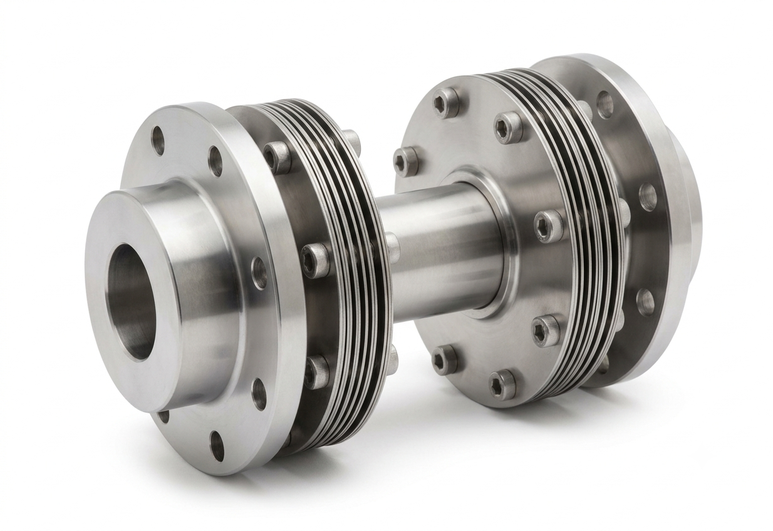

- Double Disc Pack (GL-D)

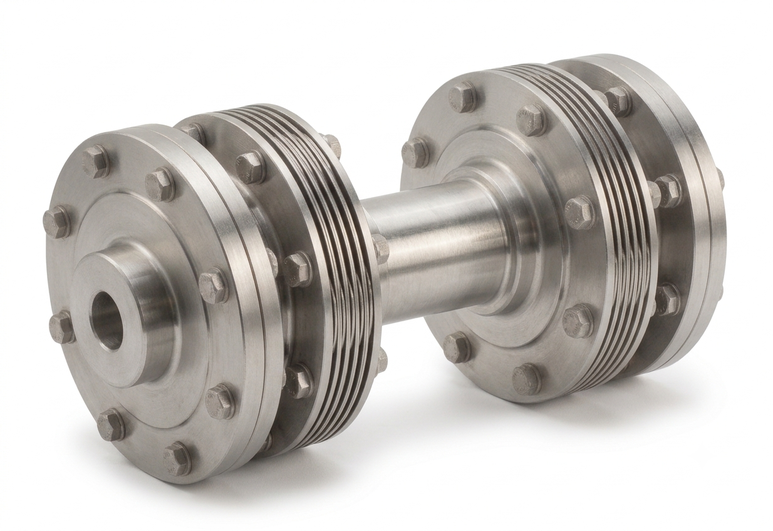

- With Intermediate Spacer
- High-Speed Executions
- Backlash-free Design
MATERIALS & CONSTRUCTION
| Component | Manufacturing | Heat Treatment |
|---|---|---|
| Disc Packs | Stainless Steel (AISI 301/304) | Cold rolled / Solution annealed |
| Hubs & Spacers | High-quality C45 / Alloy steel | Quenched and tempered |
| Bolts | High-tensile Grade 10.9 / 12.9 | Zinc-plated / Black finished |
| Bushings | Hardened precision steel | Carburized and quenched |
MAIN CHARACTERISTICS
Maintenance-free (No lubrication)
Zero Backlash transmission
High temperature resistance
Infinite fatigue life limits
Precise angular and axial misalignment compensation
