Bespoke gears and pinions for high-torque industrial applications
TECHNICAL SPECIFICATIONS
PRECISION GEARS & PINIONS
BESPOKE SOLUTIONS FOR HIGH-TORQUE APPLICATIONS. OPTIMIZED TOOTH GEOMETRY FOR SUPERIOR MECHANICAL EFFICIENCY.
CARDAN AND TRANSMISSION S.R.L. provides a comprehensive range of custom-manufactured gears, designed to ensure perfect synchronization, noise reduction, and maximum wear resistance. Our production capabilities include:

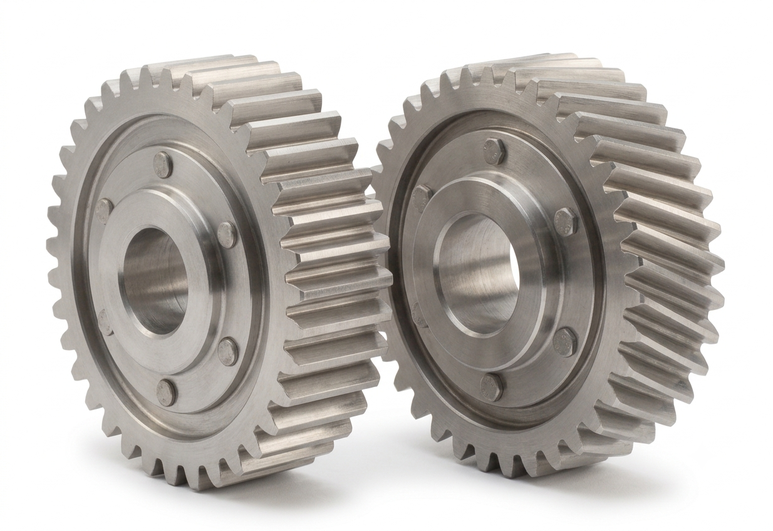

- Spur and Helical Gears

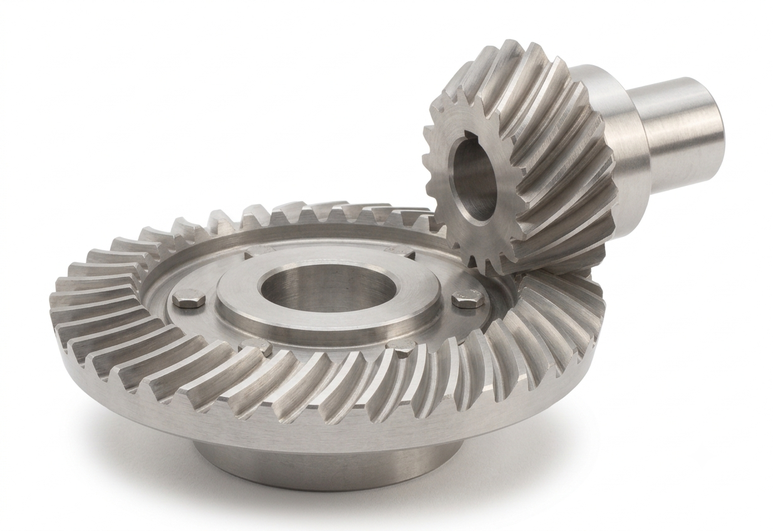

- Straight and Spiral Bevel Sets

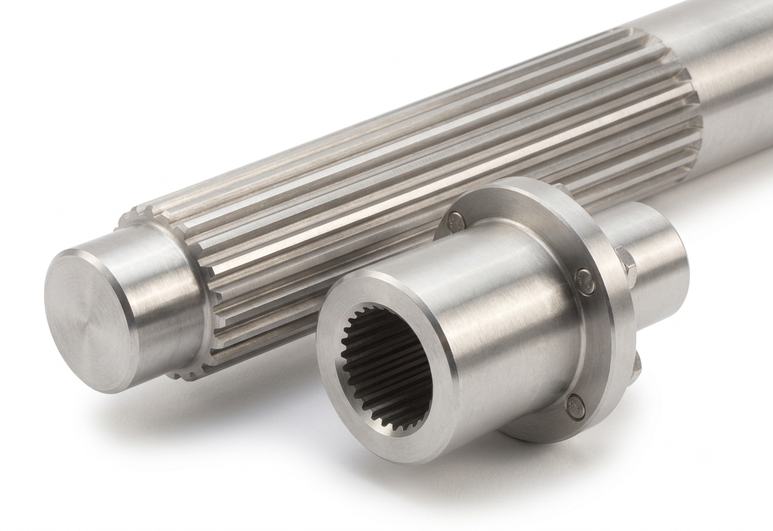

- Internal and External Splined Shafts
- Racks & Worm Gears
- Precision-ground Tooth Profiles
MATERIALS & CONSTRUCTION
| Component | Manufacturing | Heat Treatment |
|---|---|---|
| Gears & Pinions | Forged 18NiCrMo5 / 17CrNiMo6 | Carburized, Quenched and Ground |
| Bevel Gear Sets | Precision Milled / Ground Teeth | Case Hardened |
| Splined Shafts | High-strength Structural Steel | Induction Hardened / Nitrided |
| Racks & Worms | Milled or Ground Profiles | Hardened & Tempered |
MAIN CHARACTERISTICS
Ground tooth profiles (Silent flow)
Superior Surface Hardness
High wear resistance
DIN / ISO High Class standards
Fully customized modules and tooth geometries (Drawing-based)
GEAR TYPES
