Compact and robust gear couplings for extreme industrial loads
Designed with advanced crowned tooth technology for maximum durability and high torsional stiffness.
Cardan and Transmission Gear Couplings for high-torque industrial drives. Designed with precision-ground crowned teeth to ensure optimal load distribution and misalignment compensation:

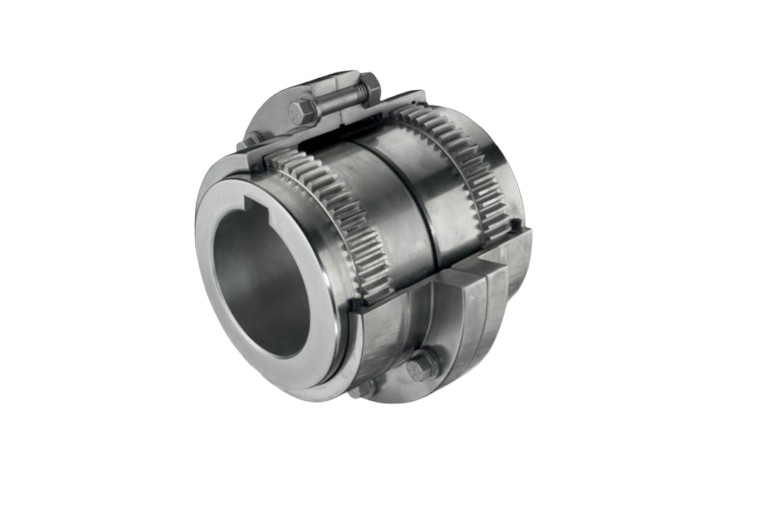

- Standard Double Engagement (GZ-A)

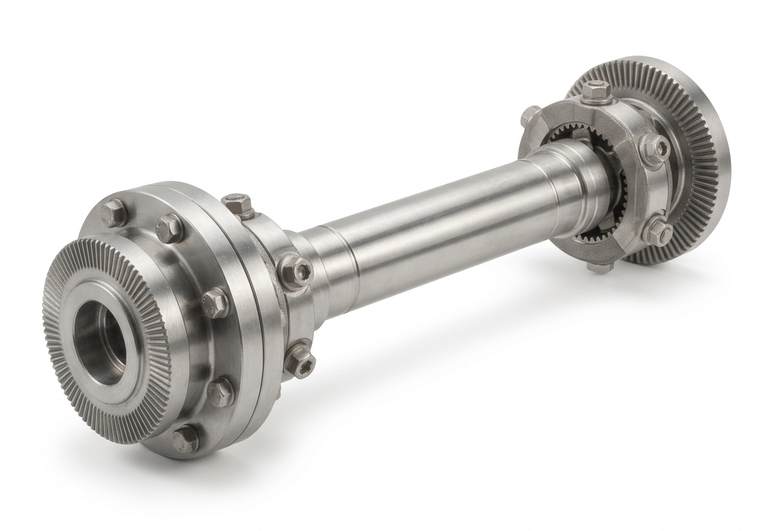

- Single Engagement (GZ-B)
- With Intermediate Spacer
- With Brake Disc or Brake Drum
- Special Executions for Vertical Mounting
Technical Performance
DESIGN RANGE: Up to 1.500.000 Nm nominal torque and 500 mm max bore capacity (larger sizes available on request).
Materials & Construction
| Component | Manufacturing | Heat Treatment |
|---|---|---|
| Sleeves & Hubs | High-strength alloy steel | Quenched and tempered |
| Teeth | Precision-milled Crowned Geometry | Induction hardened (on request) |
| Seals | Nitrile Rubber (NBR) O-rings | High temperature resistant |
| Bolts | Grade 10.9 / 12.9 High-tensile | Zinc-plated or black finished |
Main Characteristics
- Crowned tooth geometry for high angular and axial misalignment compensation
- Exceptional torque-to-size ratio for compact machine layouts
- Highest torsional stiffness for precision industrial processes
- Advanced lubrication system with dual O-ring protection
- Engineered for long-lasting performance in heavy industry environments
